Sonosite | Transducers
Designad för vardagen – testad för det extrema
Sonosite-transducers är utvecklade för att möta behoven i klinisk praxis. De är testade för att tåla kraftiga stötar och krävande miljöer, så du kan lita på deras prestanda oavsett situation. Med branschens ledande garanti för ultraljudstransducers får du både hållbarhet och trygghet i vardagen.

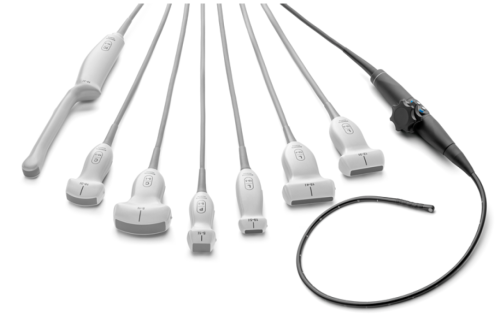

Nedan hittar du en översikt över alla Sonosite-transducers, deras kompatibilitet med de olika systemen samt de specifikationer som kan användas för varje enskilt system.
Låt våra specialister guida dig till den optimala uppsättningen!
Curved Tranducers

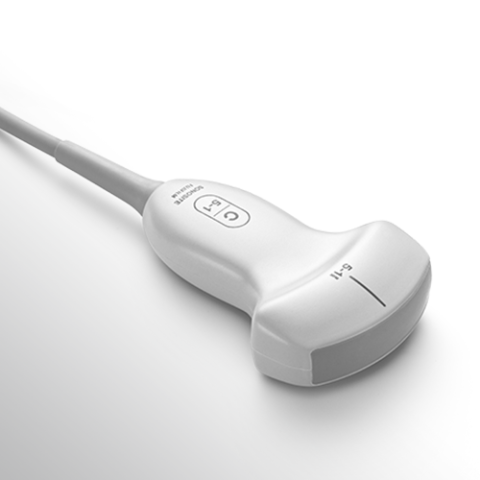

C5-1
Frekvens: 5-1 MHz
Scanningsdjup: 4,7-30 cm
Scanningstyper: Abdominal, Gynecology, Lung, MSK, Nerve, Obstetrics, Spine, VExUS

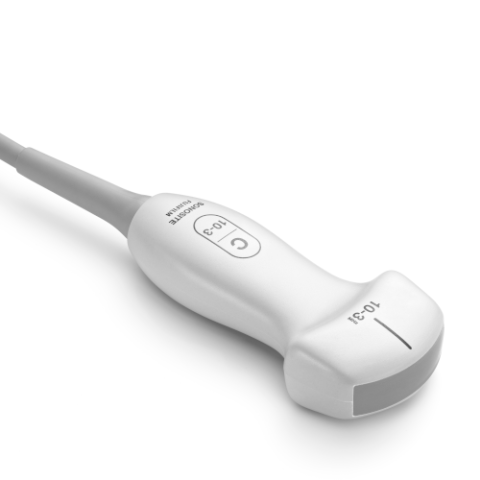

C10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-18 cm
Scanningstyper: Abdominal, Gynecology, Lung, MSK, Nerve, Spine, VExUS

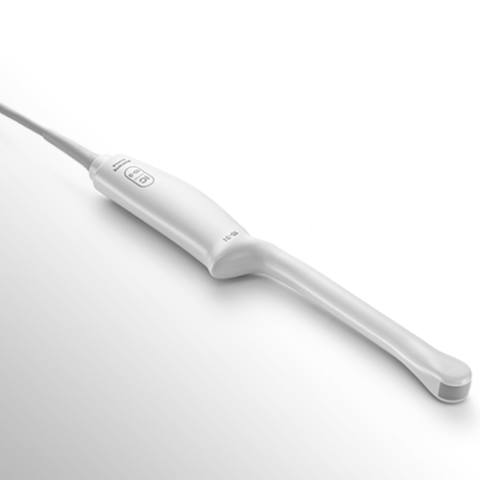

IC10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-15 cm
Scanningstyper: Gynecology, Obstetrics, Prostate
Linear Transducers
L12-3
Frekvens: 12-3 MHz
Scanningsdjup: 1.5-9 cm
Scanningstyper: Arterial, Breast, Carotid, Lung, MSK, Opthalmic, PIV, Superficial, Venous
L13-6
Frekvens: 13-6 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: MSK, PIV, Superficial, Venous

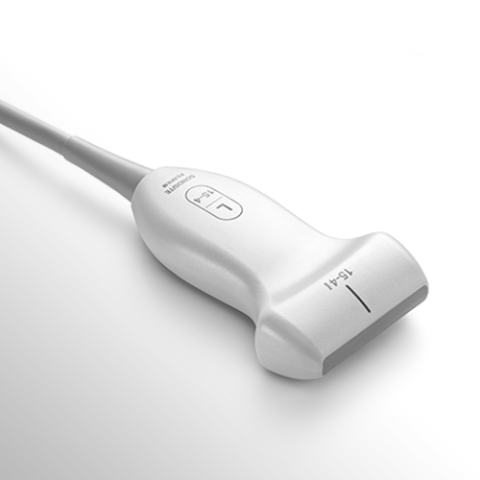

L15-4
Frekvens: 15-4 MHz
Scanningsdjup: 1.5-6 cm
Scanningstyper: Arterial, Breast, Carotid, MSK, Nerve, Superficial, Venous

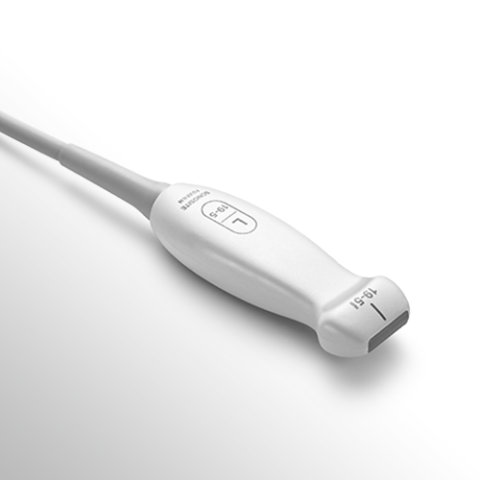

L19-5
Frekvens: 19-5 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: Arterial, Lung, MSK, Nerve, Opthalmic, PIV, Superficial, Venous
UHF46-20
Frekvens: 46-20 MHz
Scanningsdjup: 4-30 mm
Scanningstyper: Superficial, Vascular
Phased Array Transducers

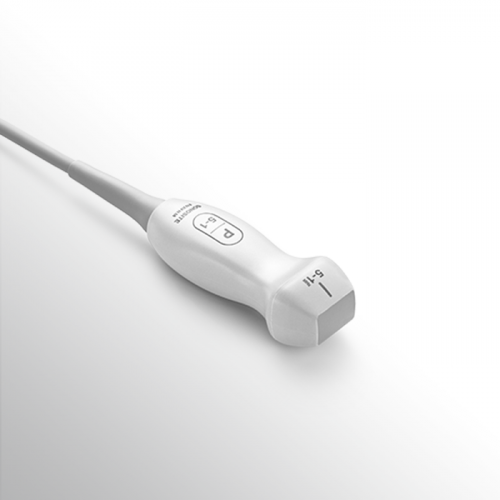

P5-1
Frekvens: 5-1 MHz
Scanningsdjup: 5-35 cm
Scanningstyper: Abdomen Bladder Cardiac Lung OB/GYN Transcranial

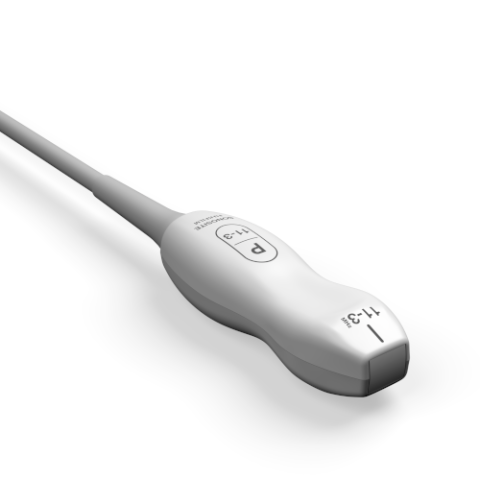

P11-3
Frekvens: 8-4 MHz
Scanningsdjup: 14 cm
Scanningstyper: Abdominal, Cardiology (CW), Neonatal Cephalic

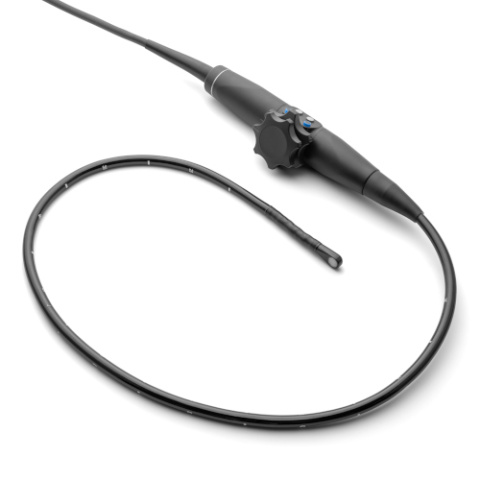

T8-3
Frekvens: 8-3 MHz
Scanningsdjup: 4-18 cm
Scanningstyper: Cardiac, Cardiac Resuscitation, Lung
Curved Tranducers
C5-1
Frekvens: 5-1 MHz
Scanningsdjup: 4,7-30 cm
Scanningstyper: Abdomen,
Gynaecology, Lung, Nerve, MSK, Early OB, OB, Procedural Abdomen, Spine, VExUS
C10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-18 cm
Scanningstyper: Abdomen, Gynaecology, Lung, Nerve, MSK, Spine, VExUS
IC10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-15 cm
Scanningstyper: Gynaecology, Early OB, OB, Prostate
Linear Transducers
L12-3
Frekvens: 12-3 MHz
Scanningsdjup: 1.5-9 cm
Scanningstyper: Arterial, Breast, Carotid, Lung, MSK, Opthalmic, Superficial, Venous, PIV
L13-6
Frekvens: 13-6 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: MSK, Venous, Superficial, PIV
L15-4
Frekvens: 15-4 MHz
Scanningsdjup: 1.5-6 cm
Scanningstyper: Arterial, Breast, Carotid, MSK, Nerve, Superficial, Venous
L19-5
Frekvens: 19-5 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: Arterial, Lung, MSK, Nerve, Opthalmic, PIV, Superficial, Venous
UHF46-20
Frekvens: 46-20 MHz
Scanningsdjup: 4-30 mm
Scanningstyper: UHF Superficial, Vessel
Phased Array Transducers
P5-1
Frekvens: 5-1 MHz
Scanningsdjup: 5-35 cm
Scanningstyper: Abdomen, Paediatric Abdomen, Cardiac, Pediatric Cardiac,
Focused Cardiac, Lung, OB, Orbital, TCD, VExUS
P11-3
Frekvens: 8-4 MHz
Scanningsdjup: 14 cm
Scanningstyper: Neonatal Cardiac,
Lung, Abdomen and head, Paediatric Cardiac, Lung and Abdomen
T8-3
Frekvens: 8-3 MHz
Scanningsdjup: 4-18 cm
Scanningstyper: Cardiac, Cardiac Resuscitation, Lung
Curved Tranducers
C5-1
Frekvens: 5-1 MHz
Scanningsdjup: 4,7-30 cm
Scanningstyper: Abdomen, Procedural Abdomen, Gynecology, Lung, MSK, Nerve, Early OB, OB, Spine, VExUS
C10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-18 cm
Scanningstyper: Abdomen, Gynecology, Lung, MSK, Nerve, Spine, VExUS
IC10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-15 cm
Scanningstyper: Gynecology, Early OB, OB, Prostate
Linear Transducers
L12-3
Frekvens: 12-3 MHz
Scanningsdjup: 1.5-9 cm
Scanningstyper: Arterial, Breast,
Carotid, Lung, MSK, Nerve, PIV, Ophthalmic, Superficial, Venous
L13-6
Frekvens: 13-6 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: MSK, PIV, Superficial, Venous
L15-4
Frekvens: 15-4 MHz
Scanningsdjup: 1.5-6 cm
Scanningstyper: Arterial, Breast,
Carotid, MSK, Nerve, Superficial, Venous
L19-5
Frekvens: 19-5 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: Arterial, Lung, MSK, Nerve, Ophthalmic, PIV, Superficial, Venous,
Vascular Access
Phased Array Transducers
P5-1
Frekvens: 5-1 MHz
Scanningsdjup: 5-35 cm
Scanningstyper: Abdomen, Pediatric, Abdomen, Cardiac, Focused Cardiac, Pediatric Cardiac, Lung, OB, Orbital, TCD, VExUS
P11-3
Frekvens: 8-4 MHz
Scanningsdjup: 14 cm
Scanningstyper: Neonatoal Cardiac, Lung, Abdomen and Head Pediatric Cardiac,
Lung and Abdomen
T8-3
Frekvens: 8-3 MHz
Scanningsdjup: 4-18 cm
Scanningstyper: Cardiac Resuscitation, Cardiac, Lung
Curved Tranducers
C5-1
Frekvens: 5-1 MHz
Scanningsdjup: 4,7-30 cm
Scanningstyper: Abdomen, Gynecology, Lung, Nerve, MSK, Early OB, OB, Procedural Abdomen, Spine
C10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-18 cm
Scanningstyper: Abdomen, Gynecology, Lung, Nerve, MSK, Spine
IC10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-15 cm
Scanningstyper: Gynecology, Early OB, OB, Prostate
Linear Transducers
L12-3
Frekvens: 12-3 MHz
Scanningsdjup: 1.5-9 cm
Scanningstyper: Arterial, Breast, Carotid, Lung, MSK, Nerve, Ophthalmic, PIV, Superficial, Venous
L13-6
Frekvens: 13-6 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: MSK, PIV, Venous, Superficial
L15-4
Frekvens: 15-4 MHz
Scanningsdjup: 1.5-6 cm
Scanningstyper: Arterial, Breast,
Carotid, MSK, Nerve, Superficial, Venous
L19-5
Frekvens: 19-5 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: Arterial, Lung, MSK, Nerve, Ophthalmic, PIV, Superficial, Vascular Access, Venous
Phased Array Transducers
P5-1
Frekvens: 5-1 MHz
Scanningsdjup: 5-35 cm
Scanningstyper: Abdomen, Cardiac,
Focused Cardiac, Lung, OB, Orbital, TCD
Curved Tranducers
C5-1
Frekvens: 5-1 MHz
Scanningsdjup: 4,7-30 cm
Scanningstyper: Abdomen, Lung,
MSK, Nerve, OB, Early OB, GYN
IC10-3
Frekvens: 10-3 MHz
Scanningsdjup: 3-15 cm
Scanningstyper: OB, Early OB, GYN
Linear Transducers
L12-3
Frekvens: 12-3 MHz
Scanningsdjup: 1.5-9 cm
Scanningstyper: Nerve, MSK,
Venous, Lung, Ophthalmic, PIV, Superficial, Arterial, Carotid
L15-4
Frekvens: 15-4 MHz
Scanningsdjup: 1.5-6 cm
Scanningstyper: Nerve, MSK, Superficial, Breast
L19-5
Frekvens: 19-5 MHz
Scanningsdjup: 1-6 cm
Scanningstyper: PIV, Venous, Nerve, MSK, Ophthalmic, Superficial
Phased Array Transducers
P5-1
Frekvens: 5-1 MHz
Scanningsdjup: 5-35 cm
Scanningstyper: Cardiac, Lung, Abdomen, OB, Transcranial, Orbital
